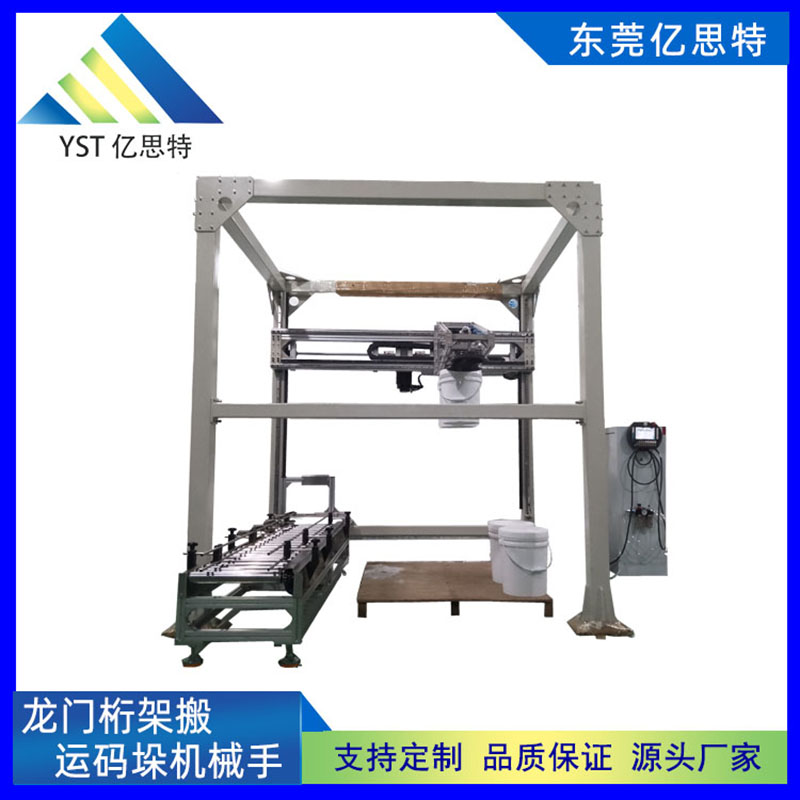

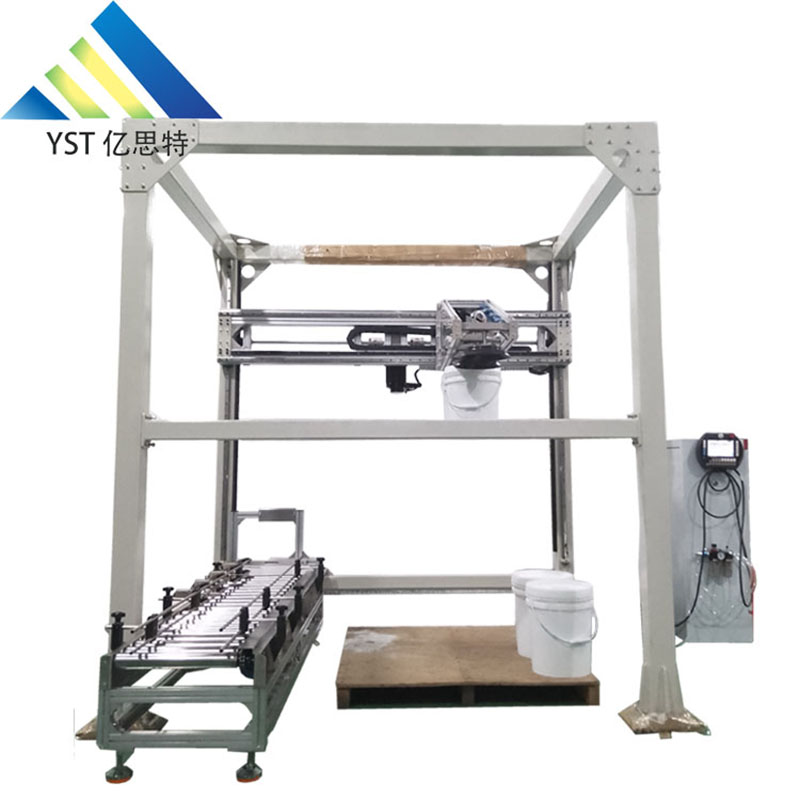

Truss Type Plastic Drum Handling Palletizing Manipulator YST-113
Short Description:
The manipulator is composed of structural frame, horizontal motion component, vertical motion component, fixture and control cabinet The equipment is mainly to put the barrel and box workpiece from the conveying line and put it into the tray for stacking, which can well replace the manual reciprocating and heavy load mechanical work
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
product description

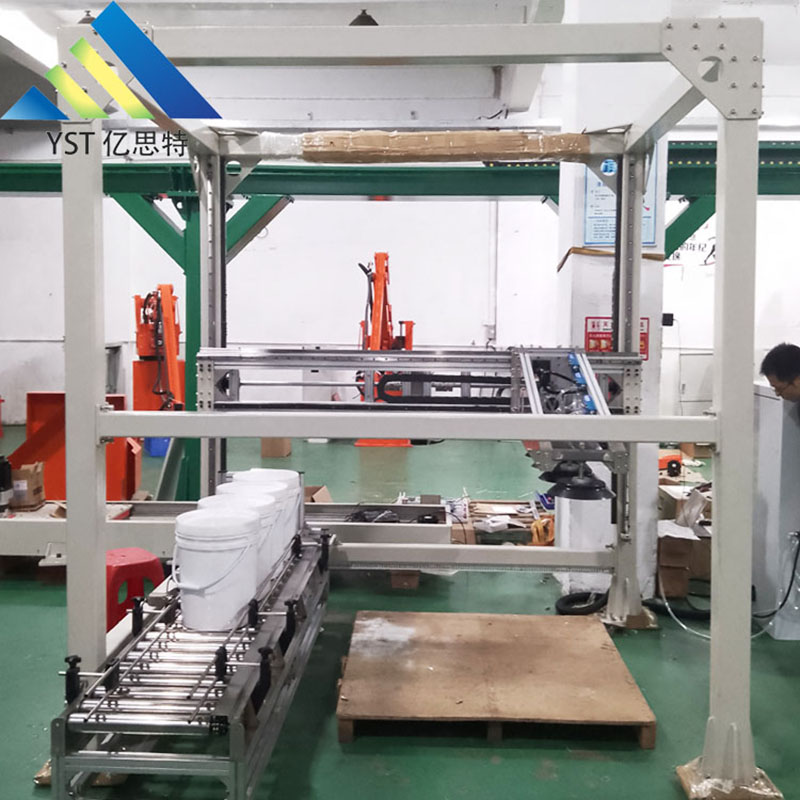

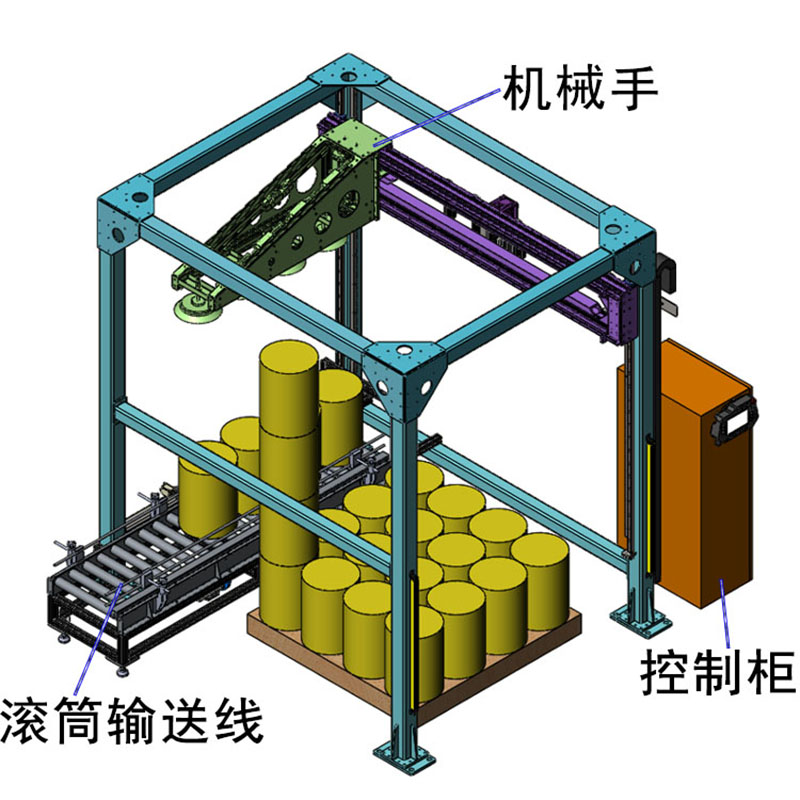

The manipulator is composed of structural frame, horizontal motion component, vertical motion component, fixture and control cabinet The equipment is mainly to put the barrel and box workpiece from the conveying line and put it into the tray for stacking, which can well replace the manual reciprocating and heavy load mechanical work
The hard-arm power manipulator system mainly includes four parts
| Model | YST-HD-4007 |
| Capacity | 12000bph |
| Capability | 20 bpm |
| Power Supply | 220V |
| Power | 5.9KW |
| Air Pressure | 0.4-0.6Mpa,30L/MIN |
| Tape Size | 2 inch (48mm), 3 inch (60-72mm), length: 1000mm yard |
| Machine Dimension | 2200(L)*1880(W)*3000(H)mm |
| Weight | 2200Kg |
| Package Type | Film + Carton + Wooden Case |
| Suitable Products | Glass Bottle/Pet Bottle/Pet Bottle/Tinplate Can |

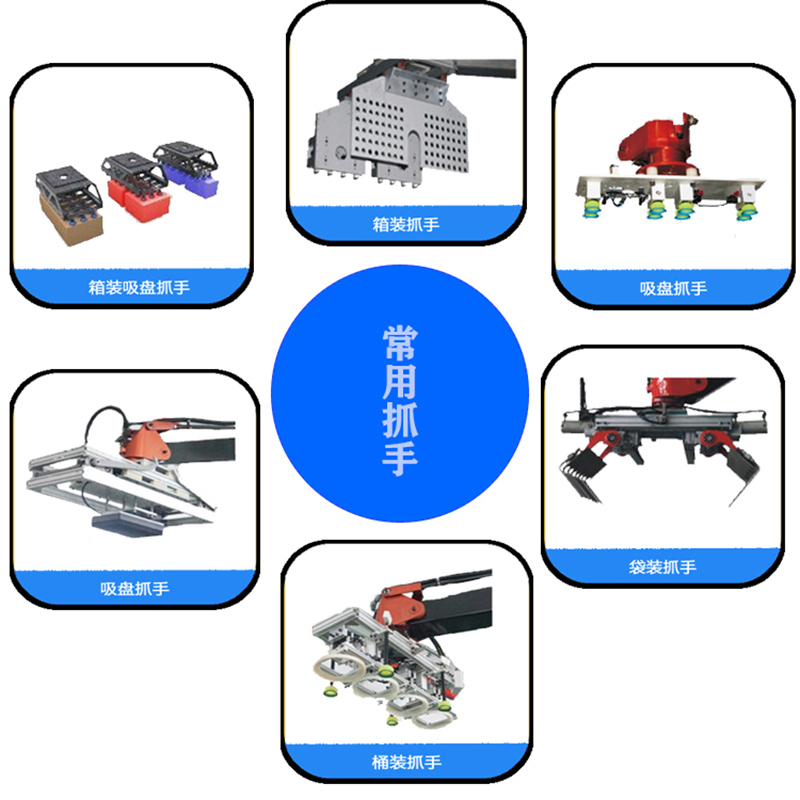

| Gripper Type | Airbag suction cup / Mechanical grip / Sponge suction cup |
Product Features
System features: Flexible configuration and easy to scale The equipment has a simple structure and a high energy efficiency Mature robot special system, flexible scheduling, touch-type operation screen, simple operation
Application scope: chemical industry, building materials, feed, food, beverage, beer, automated logistics and other industries, with different grasp, It can realize the packing and stacking of finished products in different industries.
