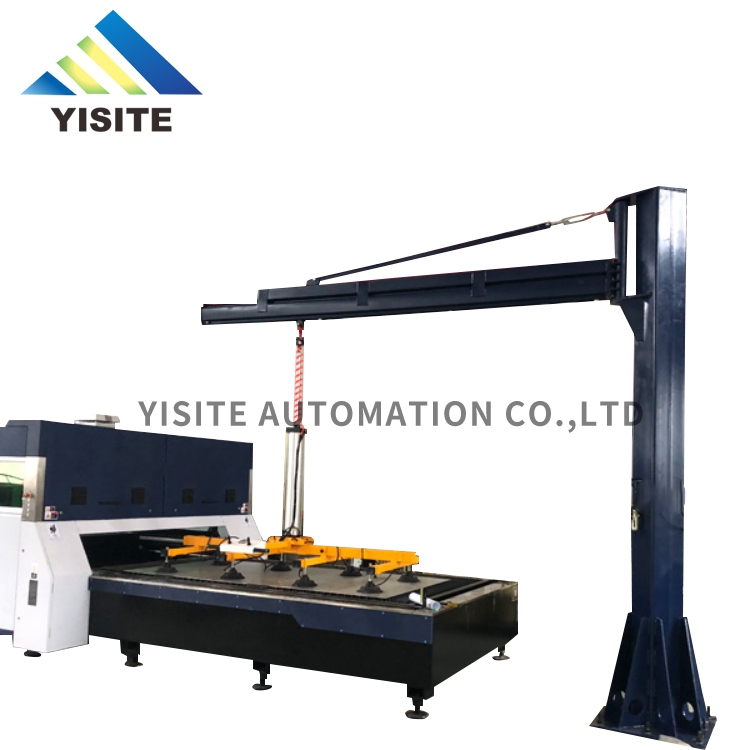

steel sheet electrical jib crane manipulator
Short Description:

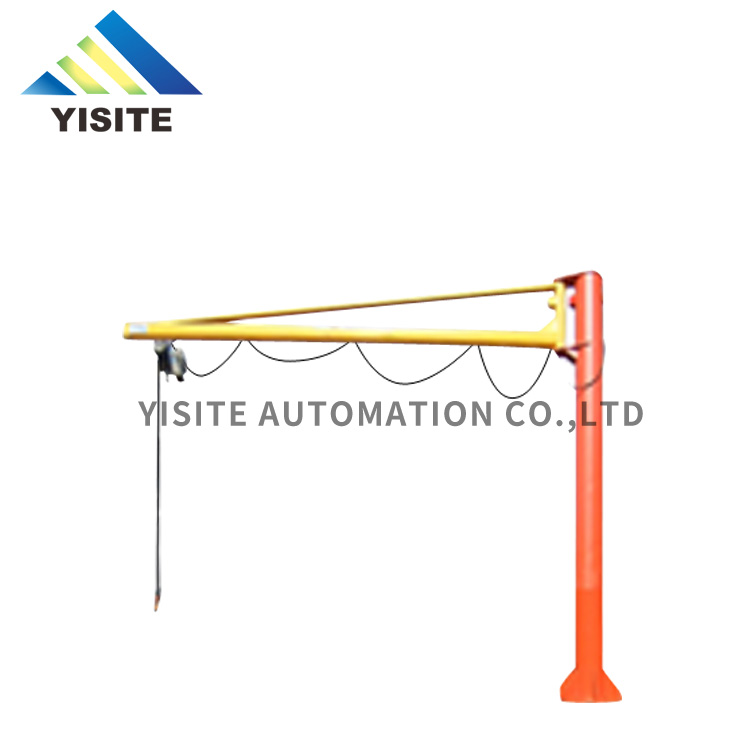

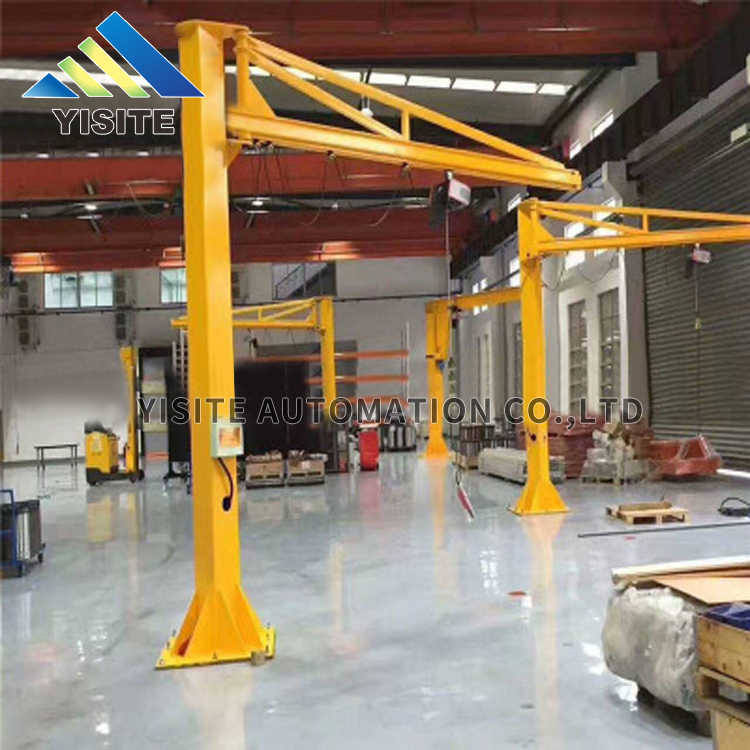

steel sheet electrical jib crane manipulator is also called cantilever lifting crane, simple structure, safe and reliable.Suitable for interval-intensive transportation occasions.It has many advantages than other traditional lifting devices.Cantilever crane is a lifting equipment using electric elevator and hand pull elevator, is a convenient and popular small lifting equipment.
steel sheet electrical jib crane manipulator is a light working strength power manipulator, composed of column, swing arm, rotary drive device and lifting equipment.With light weight, large span, movement, lifting equipment on the cantilever for left and right straight movement, and carry heavy objects.
steel sheet electrical jib crane manipulator provides lift assistance to materials, helping operators to conduct smooth, fast and accurate handling and stacking, so as to improve production efficiency and reduce labor costs.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Features of the cantilever suspension
1.Choose an aluminum alloy type arm or a steel cantilever;
2.Modular assembly, replaceable cantilever length;
3.Rotary angle of 0-360°;
4.Easy installation and fast.
Advantages of cantilever suspension
1、The safety systems for the load and for the operator are the basis of our Vacuum lifters design.
2、When choosing a Vacuum lifter for sheet metal, the presence of specific suction cups for sheet metal is essential for the safety of your load.
3、The adjustable structure of the vacuum lifters for sheet metal will make your work even easier.
4、Lifting sheets and plates of different sizes
| Model | Load | R/mm | H/mm | A/mm | Rotation | Material | Working |
| YST-XBD125 | 125 | 1500-6000 | 2000-5000 | 550 | 360 | aluminium alloy | Hand |
| YST-XBD250 | 250 | 1500-6000 | 2000-5000 | 550 | 360 | aluminium alloy | Hand |
| YST-XBD500 | 500 | 1500-6000 | 2000-5000 | 550 | 360 | aluminium alloy | Hand |
Product Description
The Vacuum Lifter for metal sheets is a model with compressed air operating system and requires connection to the pneumatic system .
Pneumatic Vacuum Lifters are the optimal solution for use on jib cranes or other lifting means, where pneumatic connection is possible.
The model has a maximum capacity of 1000 kg, is composed of a crossbar with a length of your choice, on standard models from L1500 mm to L3000 mm and 6 suction plates distributed over 3 arms. The plates, equipped with springs, are in special oil-resistant vulcanized rubber.
Adjusting the position of the plates and arms allows you to adapt the Vacuum Lifter to the different formats of the metal sheets to be lifted.
The model has a steel reinforced supporting structure and a horizontal fixed frame.
