metal sheet handling Jib Cranes Manipulator
Short Description:

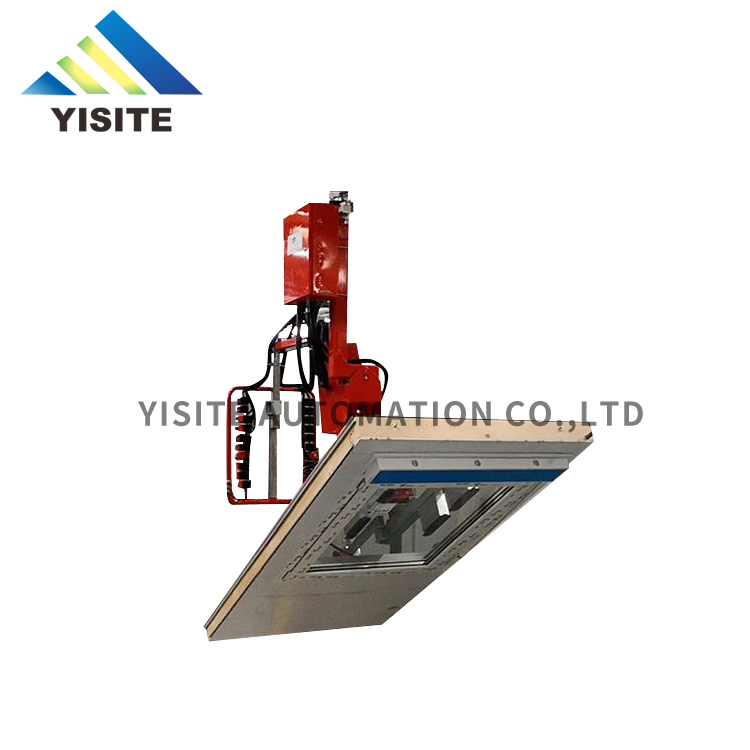

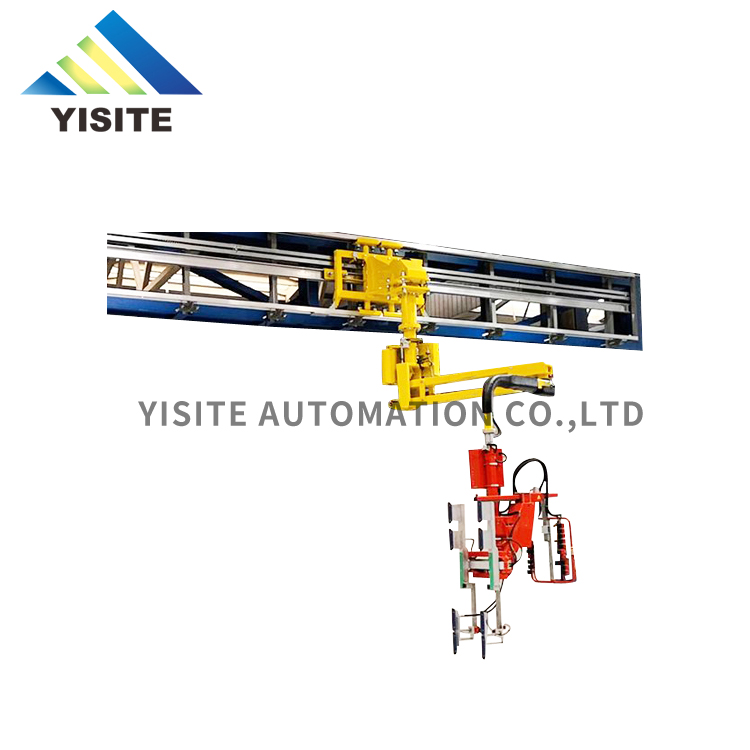

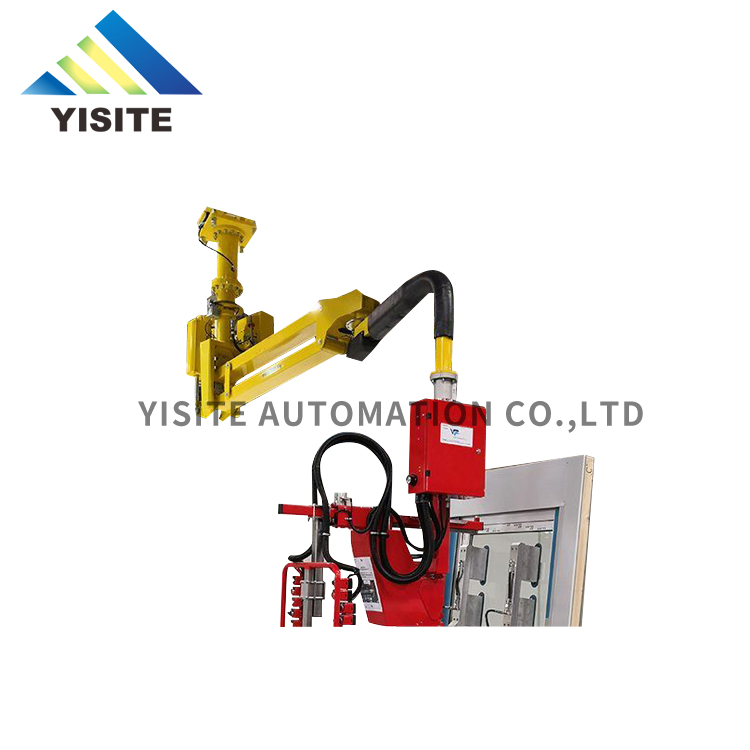

This project is a suspension power-assisted manipulator for metal sheet.
A human operated robot clamps the metal sheet from the pallet.
Turn it over at a certain angle and put it into the machine.
Product weight is customized,
The working radius of the manipulator is customized, and the lifting height is 1.3 meters.
we can customize different gripper for different load.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Product characteristics
Suspension pneumatic power manipulator with the light weight, compact structure, short working cycle, is suitable for vertical offset and quick pull.The user manually operates the mechanical arm to complete the manipulator upper and down movement and rotary movement, and operates the clamp through the pneumatic switch, so as to perform artifact handling, loading, assembly and other operations.Pneumatic power manipulator can reduce the labor intensity of operators, realize light handling and accurate positioning when handling large-quality workparts, and ensure the safety of equipment and operators.
The working principle and mode of the suspension power manipulator:
By detecting the suction cup or the end of the manipulator and balancing the gas pressure in the cylinder, it can automatically identify the load on the mechanical arm, and automatically adjust the air pressure in the cylinder through the pneumatic logic control circuit, to achieve the purpose of automatic balance.When working, heavy objects are like being suspended in the air, which can avoid the collision of product docking.Within the working range of the mechanical arm, the operator can easily move it back, left and down to any position, and the person itself can easily operate.At the same time, the pneumatic circuit also has chain protection functions such as preventing accidental object loss and pressure loss protection
Features
Max payload. 900 Kg
Max Action radius: 4500 mm
Vertical Travel: 0,5m/min
Control system: 2200 mm
Control system: air fully pneumatic
Supply: compressed air (40 µm)，no contain grease
Working pressure: 0.7 ÷ 0.8 Mpa
Working temperature: +0° a +45° C
Noise: air consumption: 100 Nl ÷ 400 N per cycle
Rotation: Column shaft and fixture shaft 360° continuous rotation,middle shaft 300° continuous rotation
