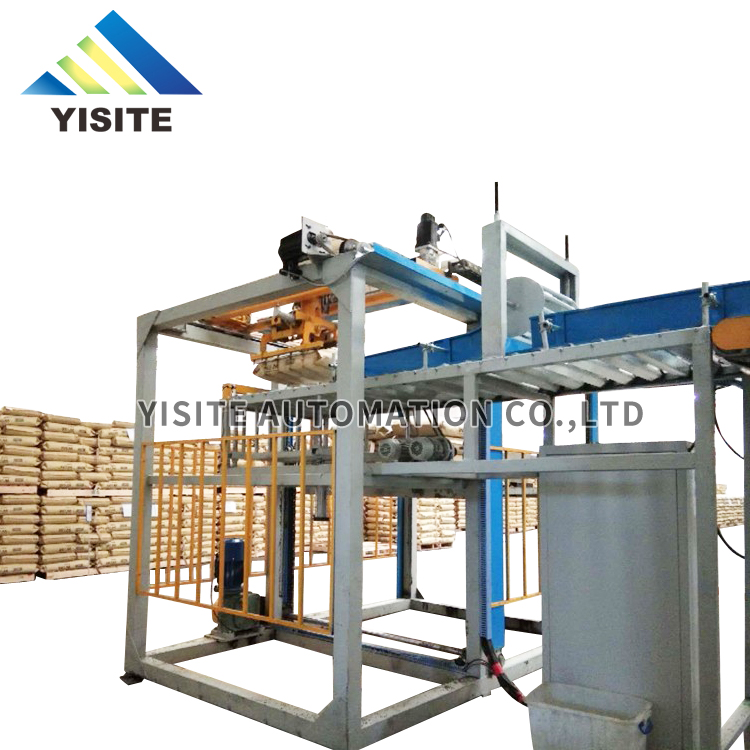

High Station Cement Bags Automatic Palletizer
Short Description:
High Station Cement Bags Automatic Palletizer are automatic layer depositing with medium to high outputs for 2000 to 5000 bags per hour. We can palletize a very broad range of products with all types of bags.
The bags are oriented by a cross or clamp, then layers are built row-by-row based on your chosen bag pattern. Each layer is squared and pressed to optimize pallet shape and stability. The modular design can be upgraded to change outputs and pallet patterns. The palletizers are available in anti-corrosion, ex-proof, and anti-abrasion versions.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Technical Parameters
| Item | Full Automatic Palletizing Machine |
| Stacking type | 5/6/7/8/9/10 bags per layer or customized,stacking height≤1.5m(1) 9layer/50packages:6bags/layer*8layer+2bags*1layer=50bags (2) 9layer/54packages:6bags/layer*9layer=54bags (3) 10layer/50packages:5bags/layer*10layer=50bags |
| Pallet size | 1.6*1.4m, 1.5*1.3m or customized as you need |
| Stacking Capacity | 450-500bags/hour(40kg/bag) |
| System | PLC system and 10" full touch screen panel (HMI) |
| Air source | 0.6-0.8Mpa,0.8Nm³/h |
| Dimension(L*W*Hmm) | 4500*2300*3100mm(mainframe,not including the conveyor. Final as per the confirmed produce drawing. |
| Power | 11.02kw |
| Voltage | single/three phase AC220V/AC380V/50HZ |
| Working environment | （-10℃~40℃） |
| Relative humidity | ≤90%RH non condensation |
| Machine materials | carbon steel with anti-rust painting |
Structure characteristics of the high-level stacker
1. The cement palletizing robot is equipped with a conveyor storage bag monitoring device, and automatically adjust the production speed according to the monitoring data
2. The cement paltizing manipulator structure is simple and easy to maintain. The door of the control cabinet is equipped with sealant strip and equipped with high-quality ventilation filter device.The equipment is equipped with multi-layer alarm indicator lights that can indicate different faults (faults that must be reset, automatic reset faults, operation instructions, etc.).The program is reasonable and fault prompt.When the stack appears, inverted, scattered phenomenon can automatically shut down
3. The safety protective net, operation platform, maintenance platform and support column of cement high automatic stacker are treated with spray plastic
4. The paint surface of the high level bag stacker conveyor plate (not less than 2mm thickness), support legs, guardrail holder (16mm of support phase) shall be sprayed
5. The safety protection device of the high position stacking manipulator can automatically stop and alarm in abnormal conditions of the equipment
6. The bag stacker robotic arm manipulator has a clean appearance, baked surface paint, bright color, white color (according to the different requirements of customers) as the base color, and reasonable broadcast matching.Mobile part and safety protection devices shall adopt warning color and warning signs
Advantages Feature
Automatic Bag Palletizer Machine can stack bigger pallet with higher level and speed compared to the robot palletizer and low level palletizer. Automatic bag palletizier machine has the advantages of optimized construction planning and stable and reliable movement. The palletizing process is completely automatic, and there is no need for manual intervention in normal work, so it has a universal scope of application.
