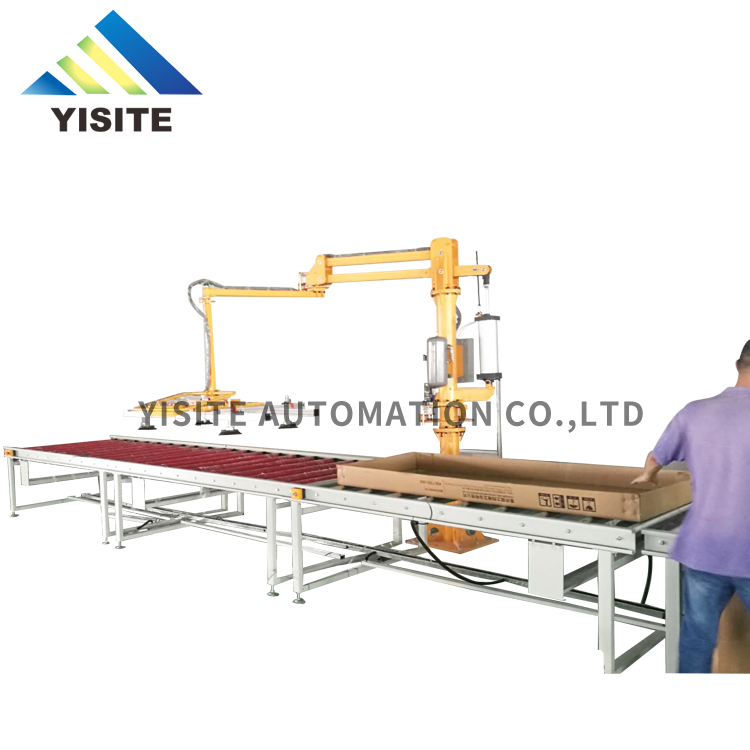

Glass Handling Suction Manipulator
Short Description:
This pneumatic glass handling manipulator is our mainly independent development of carrying power arm glass packing equipment,simple button operation can realize the rapid handling of glass packing, abandon several artificial lifting production conditions, reduce glass damage and stains, etc., improve production efficiency, save labor, simple operation, safe and reliable.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Product features
1.Glass handling power manipulator with high stability, simple to operate.With full pneumatic control, the piece handling process can be completed by operating the pneumatic control switch.
2.Pneumatic machinery with high efficiency, short handling cycle.After the handling begins, the operator can control the artifact movement in the space with less force, and can stop at any position, and the handling process is easy, fast and coherent.
3.High safety performance, set up a gas break protection device.When the gas source pressure suddenly disappears, the artifact will remain in the original position without falling immediately.
4.The main components of the power manipulator are all made of internationally famous brand products, and the quality is guaranteed.

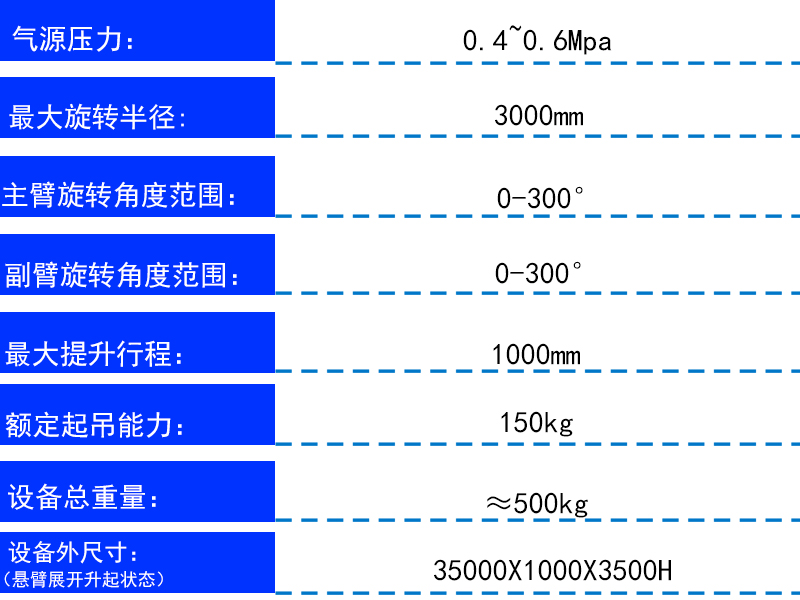

performance parameter
1、Air source pressure：0.4~0.6Mpa
2、Rotation radius：2000mm
3、Main arm rotation：0-300°
4、Auxiliary arm rotation：0-300°
5、Lifting stroke：600mm
6、Lifting range： 700mm-1250mm
7、Working pressure： ≥0.5Mpa
8、Lifting load capacity：70kg
9、Machine weight：≈400kg
10、Machine size：32600x 1300x3200H
11、Product size：L2200/1800xW1300/500xT10/5mm;
Equipment function configuration
1. The main gas source of the equipment is equipped with a gas storage tank to prevent sudden gas break and protection.
2. The main and auxiliary rotation arms of the power manipulator have the brake function to prevent the accidental rotation and collision of the auxiliary arms and fixtures.
3. The suspension lifting cylinder has a mechanical limit mechanism to effectively prevent the mechanical arm from exceeding the lifting range.
4. The fixed flange of the main arm of the glass-assisted manipulator has a rotation angle limit device, and the rotating arm can be formulated according to the actual site
Rotate the angle range.
5. The rotation function of the clamp arm has a rotation angle limit device to prevent damage beyond the angle range
Air route elements.
6. The product suction device has the balance adjustment function to prevent the inconsistent parallelism of the pickup and release points.
7. The fixture of the manipulator adopts suction suction and is controlled by regions to facilitate the removal and release of products.
8. The balance arm is controlled by full gas control mode, which has the characteristics of high safety and stable work efficiency.
