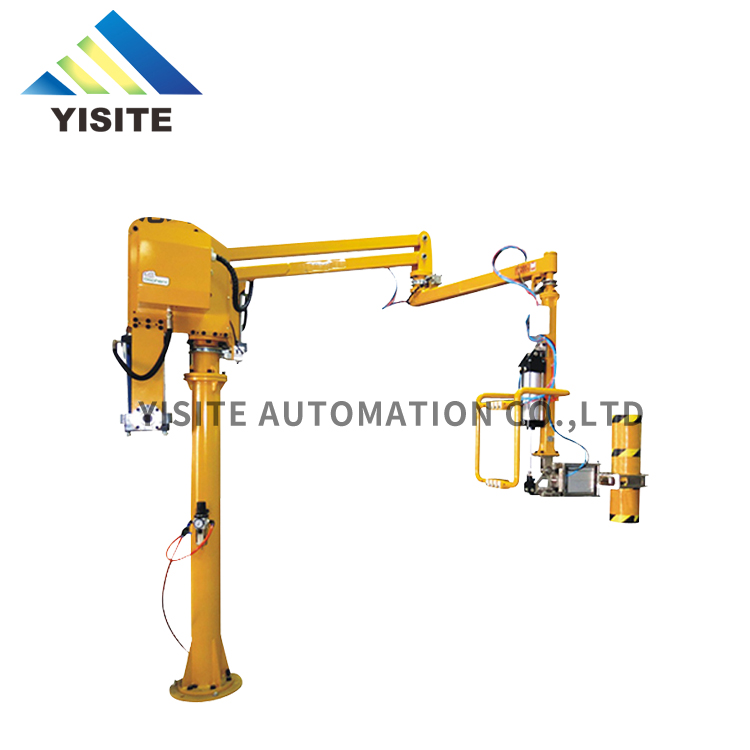

cylindrical clip handling manipulator
Short Description:
cylindrical clip handling manipulator is mainly used for the handling of cylindrical iron parts, with a maximum load of 150kg.This power arm abandons the traditional several manual lifting and handling, to achieve a person easily handling,reduce labor intensity, improve production efficiency, safe and reliable,Convenient maintenance, only need a simple button operation can realize the rapid handling of spare parts,This product is also suitable for plate, marble, ceramic tile, steel plate materials, packing, handling, etc;
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Product features
1. High stability and simple operation.With full pneumatic control, only one control switch.
2. High efficiency and short handling cycle.After handling begins, the operator can control the movement of the piece in space with less force,And can stop at any position, the handling process is easy, fast and coherent.
3. High safety performance, and set up a gas break protection device.When the gas source pressure suddenly disappears, the artifact will remain in the original position without falling immediately.
4. The main components are all internationally famous brand products, with quality guaranteed.
performance parameter
1,Air source：0.4~0.6Mpa
2,Max arm length：3000mm
3,Rotation：0-300°
4、assist arm rotation：0-300°
5、Max lifting：1000mm
6、Lifting load：150kg
7、Weight：≈500kg
8、Machine size：35000X1000X3500H
Equipment function configuration
1. The main gas source of the equipment is equipped with a gas storage tank to prevent the sudden gas break and protection.
2. The main and auxiliary rotating arms have the brake function to prevent the accidental rotating collision of the auxiliary arms and fixtures.
3. The suspension lifting cylinder has a mechanical limit mechanism to effectively prevent the mechanical arm from exceeding the lifting range.
4. The main arm fixed flange has a rotation angle limit device, and the rotation angle range can be formulated according to the actual field.
5. The rotation function of the clamp arm has a rotation angle limit device to prevent damage to the air elements beyond the Angle range.
6. Full gas control, with safe and stable work efficiency
