This project is to pick up 60KGS iron by pneumatic hard arm manipulator,lifting height is 1450mm,arm length is 2500mm
The introduction of hard arm pneumatic manipualtor is as belowing:
One. Equipment overview
Pneumatic manipulator is a kind of power-assisted handling equipment independently developed by our company that is used in the production line. The equipment is simple to operate, safe and reliable to use, and convenient to maintain. The most ideal handling equipment for modern production lines, warehouses, etc.
Two. Product structure
The power-assisted manipulator equipment is mainly composed of three parts: the balance crane host, the grabbing fixture and the installation structure
The main body of the manipulator is the main device that realizes the gravity-free floating state of materials in the air.
The manipulator fixture is a device that realizes workpiece grasping and completes the user’s corresponding handling and assembly requirements.
The installation structure is a mechanism to support the whole set of equipment according to the requirements of the user’s service area and site conditions

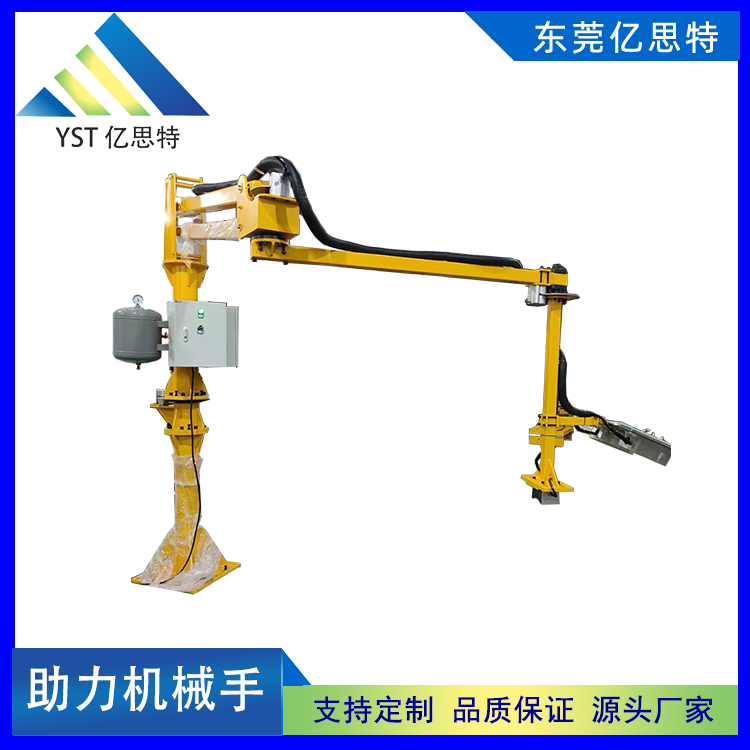

(The structure of the equipment is as follows, and the fixture is customized according to the load)
Three:Equipment parameter details:
Operating radius: 2500-3000m
Lifting range: 0–1600mm
Arm length: 2.5 meters
Lifting radius range: 0.6-2.2 meters
Equipment height: 1.8–2M
Horizontal rotation angle: 0~300°
Rated load: 300Kg
Product Specifications: Customized
Equipment size: 3M*1M*2M
Rated working pressure: 0.6–0.8Mpa
Fixed form: ground fixed with expansion screws
Four. Equipment Features
Compared with the traditional electric power-assisted manipulator,this machine has the advantages of light structure, convenient disassembly and assembly, and it has the characteristics of a wide range of uses, and can handle loads from 10Kg to 300Kg to meet the needs of different usage.
This product has the following salient features:
1. High stability and simple operation. With full pneumatic control, only one control switch can be operated to complete the workpiece handling process.
2. High efficiency and short handling cycle. After the transportation starts, the operator can control the movement of the workpiece in the space with a small force, and can stop at any position. The transportation process is easy, fast and coherent.
3. The gas cut-off protection device is set up, which has high safety performance. When the pressure of the gas source suddenly disappears, the workpiece will remain in the original position and not fall immediately to ensure the completion of the current process.
4. The main components are all well-known brand products, and the quality is guaranteed.
5. Working pressure display, showing the working pressure status,reducing the risk of equipment operation.
6. The primary and secondary joints are equipped with the brake safety device of the rotary brake to avoid the rotation of the equipment caused by external force, realize the locking of the rotary joint and ensure safe operation.
7. The whole balance unit realizes “zero-gravity” operation, and it is easy to operate the equipment.
8. The whole machine is based on the principle of ergonomics, allowing the operator to operate easily and freely, saving time and effort.
9. There is a protective device at the gripper of the manipulator to avoid scratching the load
10. The equipment is equipped with a pressure regulating valve and an air storage tank to provide stable compressed air.
Five, working environment requirements:
Working area temperature: 0~60℃ Relative humidity: 0~90%
Six. Precautions for operation:
This equipment should be operated by special personnel, and other personnel need to receive professional training when they want to operate.
The preset balance of the main unit has been adjusted. If there is no special situation, do not adjust it. If necessary, ask a special person to adjust it.
When moving the fixture to its original position, press the brake button, activate the brake device, lock the arm, and wait for the next operation. When the main engine stops working, brake and lock the boom to prevent the boom from drifting.
Before any maintenance, the air supply switch must be turned off and the residual air pressure of each actuator must be exhausted to avoid crashing the system.
Training, commissioning and operation of this equipment are only allowed under safe circumstances. At the end of a work shift, be sure to unload, return the equipment to its original position, and turn off the power source.
