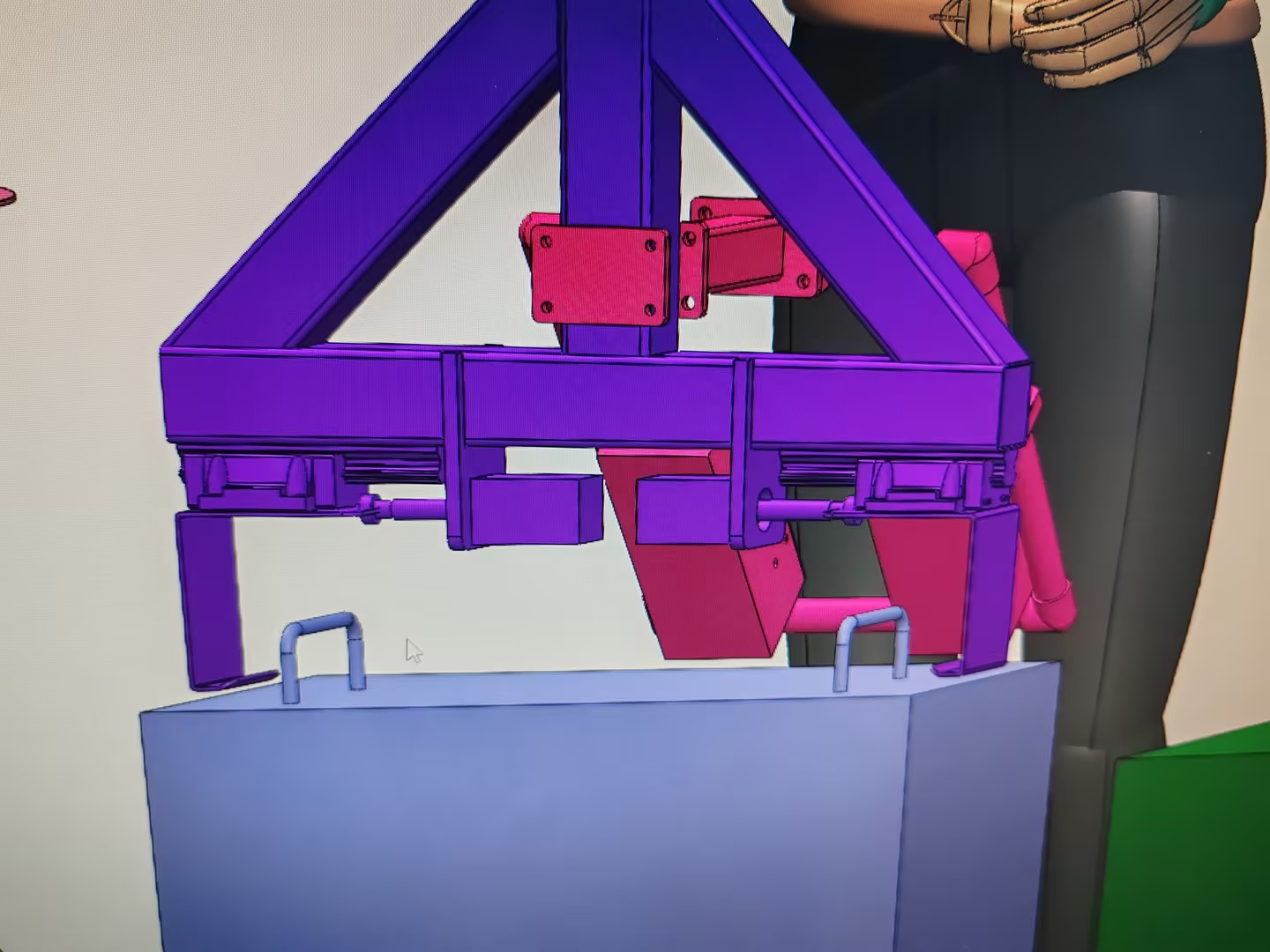

This project is designed for a russian customer,they are manufacture of plastic electric switches,the max weight is 113KGS,it is hard for a person to move it,so we designed a pneumatic assisted manipulator for them,the gripper is designed to handle the ear of the load,as they can not fix the manipulator on the floor,so we designed a stand,the arm length is 3 meters,lifting height is 1.5meteres
The advantage of pneumatic assisted manipulator is as belowing:
1. High stability and simple operation. With full pneumatic control, only one control switch can be operated to complete the workpiece handling process.
2. High efficiency and short handling cycle. After the transportation starts, the operator can control the movement of the workpiece in the space with a small force, and can stop at any position. The transportation process is easy, fast and coherent.
3. The gas cut-off protection device is set up, which has high safety performance. When the pressure of the gas source suddenly disappears, the workpiece will remain in the original position and not fall immediately to ensure the completion of the current process.
4. The main components are all well-known brand products, and the quality is guaranteed.
5. Working pressure display, showing the working pressure status,reducing the risk of equipment operation.
6. The primary and secondary joints are equipped with the brake safety device of the rotary brake to avoid the rotation of the equipment caused by external force, realize the locking of the rotary joint and ensure safe operation.
7. The whole balance unit realizes “zero-gravity” operation, and it is easy to operate the equipment.
8. The whole machine is based on the principle of ergonomics, allowing the operator to operate easily and freely, saving time and effort.
9. There is a protective device at the gripper of the manipulator to avoid scratching the load
10. The equipment is equipped with a pressure regulating valve and an air storage tank to provide stable compressed air.
