The gantry robot consists of a column frame, X-axis component, Y-axis component, Z-axis component, fixture and control box.
It is a fully automatic industrial equipment based on the rectangular X, Y, Z three-dimensional coordinate system, which can adjust the workpiece position or realize the trajectory movement of the workpiece. Its control core is implemented through industrial controllers.
The controller analyzes and processes various input signals, makes logical judgments, then issues execution commands to each output component to complete the joint motion between the X, Y, and Z axes and realize a complete set of fully automatic operation processes.
It is used in product assembly and transportation, conveyor systems, and unmanned work sites. It can be used as an important peripheral equipment for temporary storage and logistics and can be flexibly matched with host equipment for easy use. Application Industries involved in : final assembly, sub-assembly, processing, testing, debugging and transportation of products and so son.
Product features are to help customers solve the problems of low efficiency or high handling risks in various types of material handling, so as to conveniently and quickly reduce handling risks, save time, effort, save labor and even replace labor.

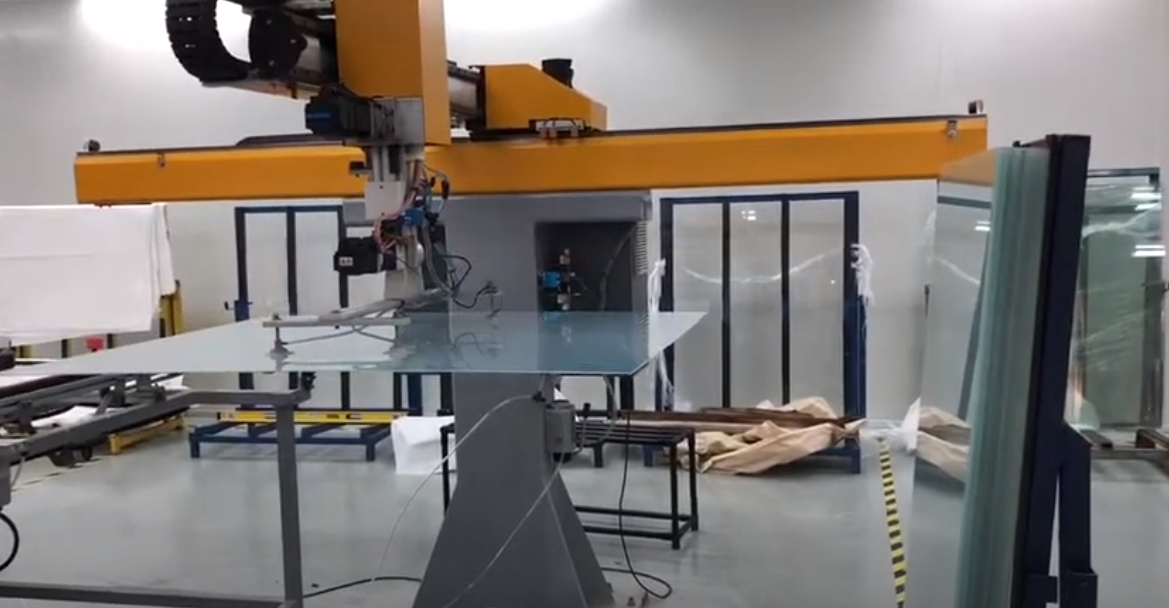

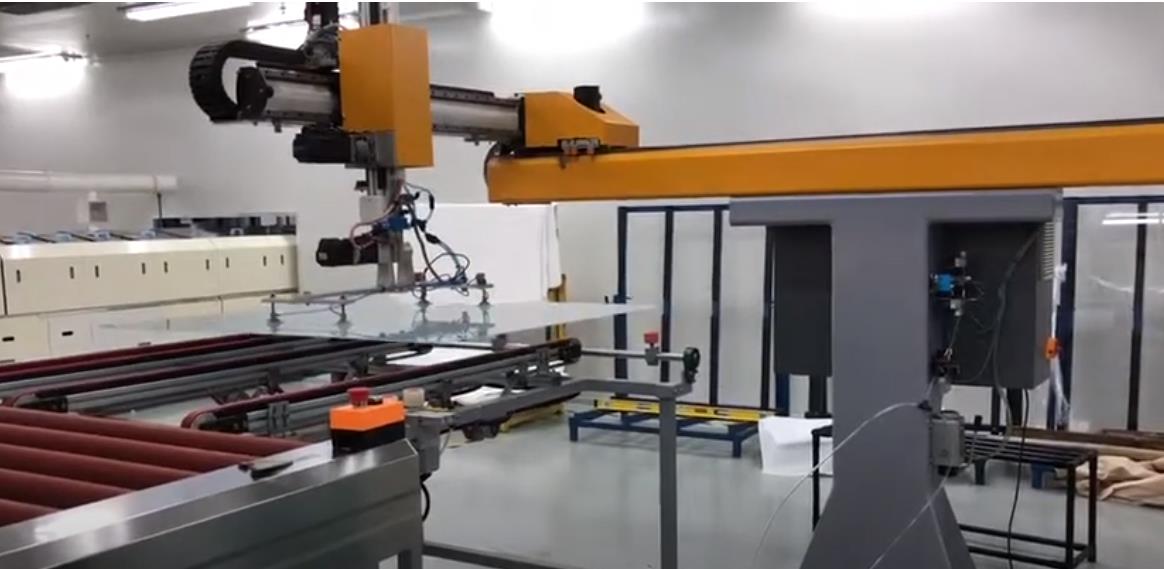

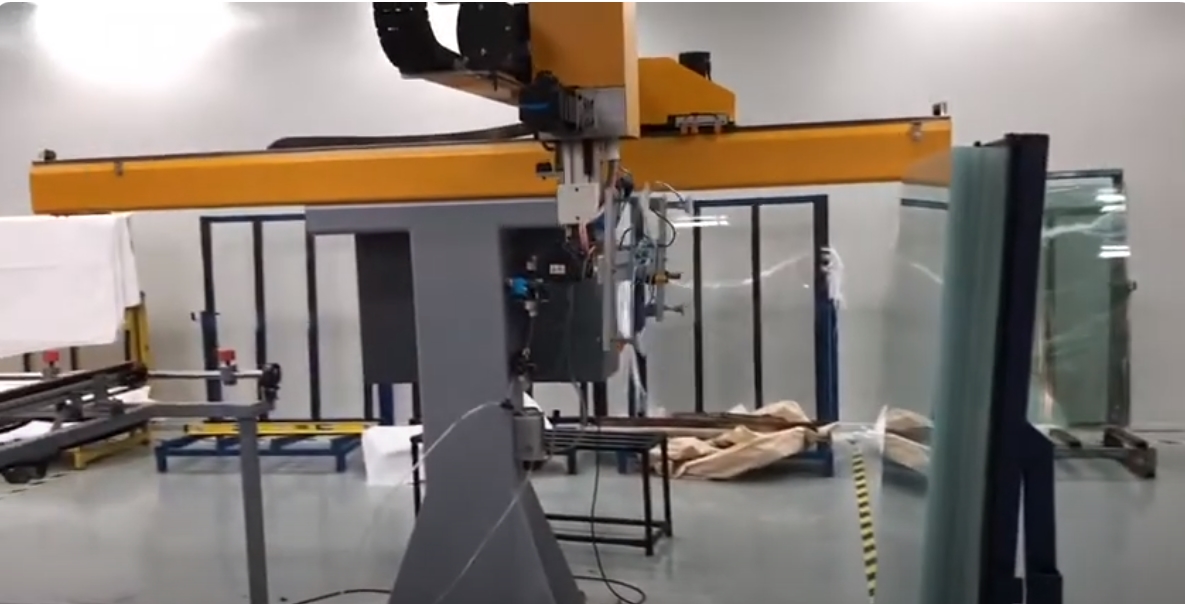

This gantry truss manipulator handling device for glass includes columns and cross beams installed on the columns. The cross beams are installed with slide rails. The slide rails are installed with a transverse sliding device. The transverse sliding device is installed with a vertical sliding device and a pneumatic suction cup device. It can be realized The transport mechanism moves at a fixed point in the three-dimensional space, sucks up the glass through the suction cup, First move laterally on the X-axis, then flip 90 degrees to the designated position, and then move up and down on the Y-axis. After reaching the set position, release the glass and place it on the glass shelf. The structural stability of the entire device is very high, which greatly improves handling. efficiency.
