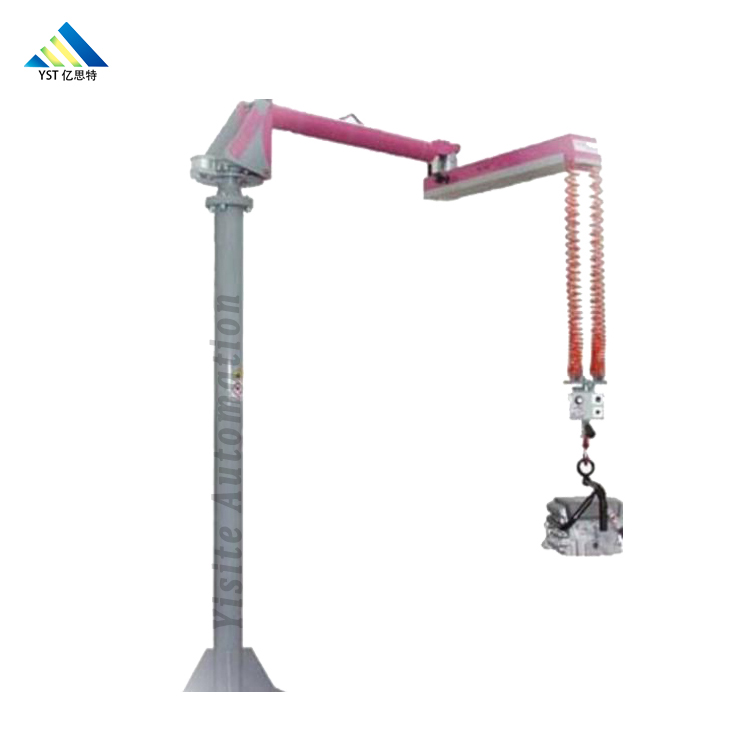

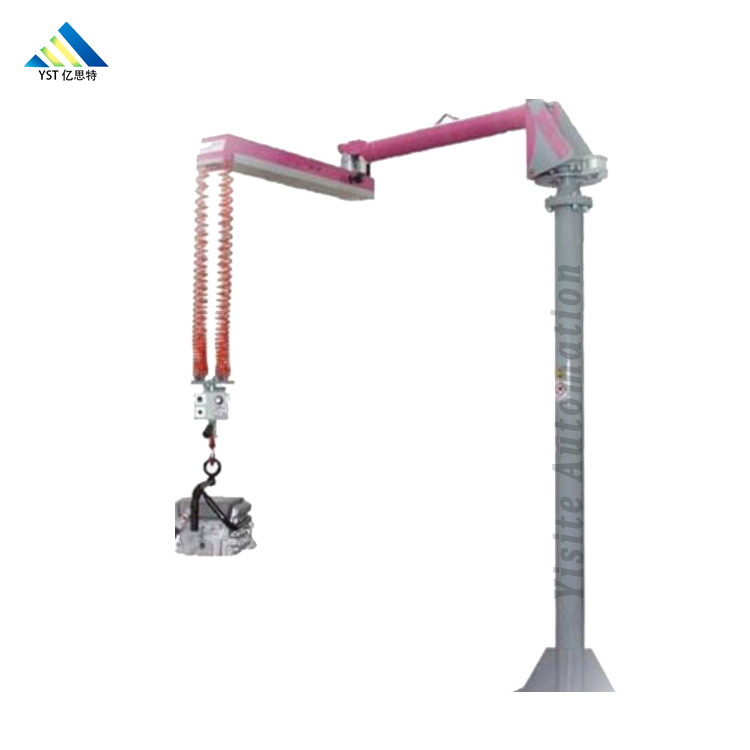

soft cable electric manipulator
Short Description:
soft Cable electric power manipulator integrated the advantages of compact and clever mechanical movement and simple aerodynamic control.Lighter operation power, faster operation speed, and full suspension during free travel.Compared with a hard-arm booster manipulator,its lifting function number is realized by moving the pulley cylinder pulling the soft cable to drive the sliding.Therefore, the usage scope of cable power manipulator is mainly used in places with light workparts weight, simple transplanting operation process,large promotion schedule and fast operation rhythm.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Cable power robot manipulator
|
Model |
Load KG |
Max Travel(mm) |
Min. Travel(mm) |
Max lifting height (mm) |
|
YST-MAR58 |
58 |
3000 |
700 |
1800 |
|
YST-MAR100 |
100 |
3000 |
700 |
2000 |
|
YST-MAR158 |
158 |
2500 |
700 |
2000 |
|
YST-MAR228 |
228 |
2500 |
700 |
2000 |
|
YST-MAR280 |
280 |
2500 |
700 |
1900 |
Product Details
1. The promotion travel is greater, and the maximum promotion travel can reach 2 meters, which is more beneficial to the handling and transplanting of high-level products;
2. More flexible operation, rely on steel wire rope promotion, balance operation force is less than 3KG, more flexible rotating joints;
3. Greater working radius, standard working radius of 3 meters, and wider working scope;
4. Pneumatic control is more convenient, and all the operation buttons are concentrated in the control box of the handle, which can be operated with one hand;
5. Special lifting mechanism, using the cylinder or pneumatic balance gourd inside the large arm, to drive the wire rope tightening, so as to lift.
Application industries
1. Broken gas protection device, to prevent the equipment from falling after the origin of the gas break, to ensure the completion of the current process;
2. Work pressure display, display the working pressure condition, and reduce the operation risk of the equipment;
3. Brake safety device, to avoid the rotation of the equipment generated by external forces, to ensure safe operation;
4. Whole-process balance unit to realize no-gravitating operation and provision of equipment operation accuracy.
