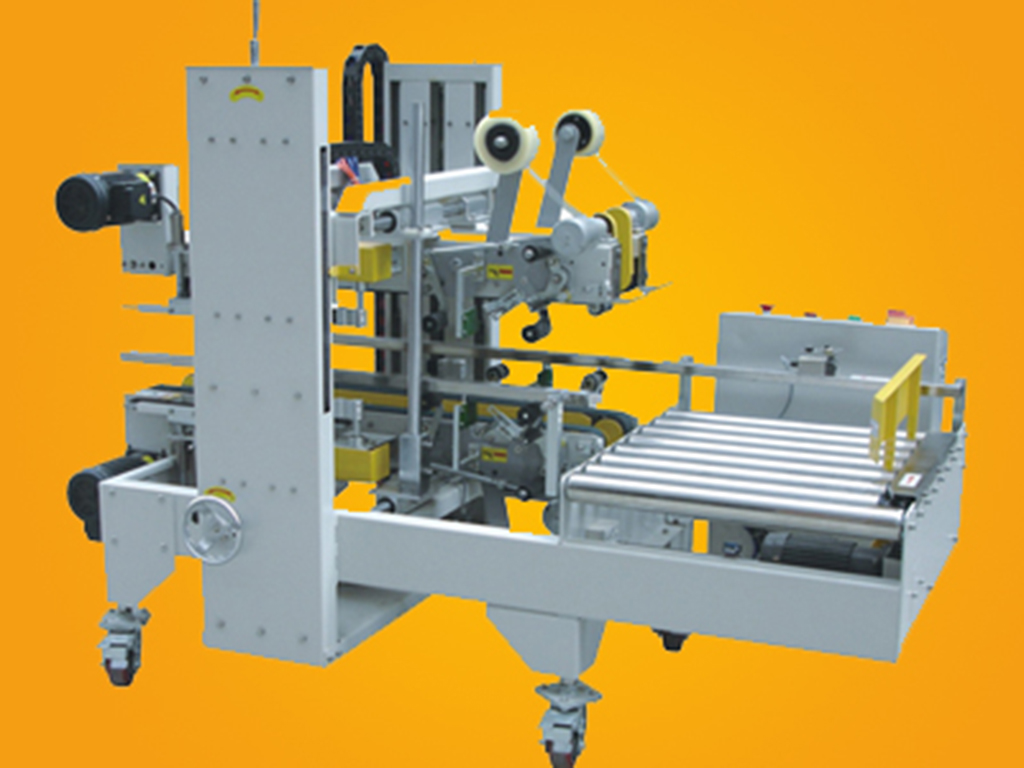

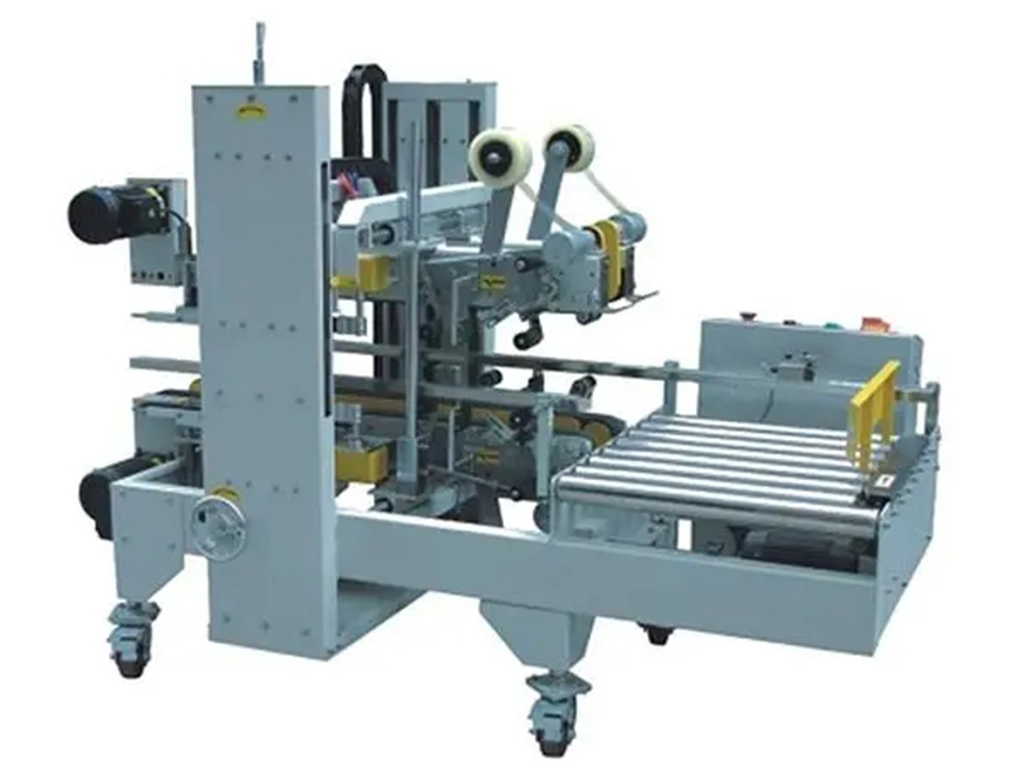

Automatic Corner Edge Sealer YST-JBFX-50
product description
Automatic corner edge sealing machine YST-JBFX-50 is the carton through the front section of the sealing machine in the middle of the upper and lower sealing, into the 90 ° corner machine, by pushing the box plate pushed into the corner edge sealing machine, photoelectric detection to the machine according to the specifications of the carton, PLC control, automatic adjustment of the machine width and height. Automatic and simultaneous sealing of the four corner edges, fast sealing speed, sealing corner folding without wrinkles, the upper and lower four corner edges of the carton at the same time automatic sealing, smoothing, no manual adjustment of the machine, simple, convenient and fast. It is suitable for customers who require high requirements for external packaging and strict protection for internal products.
Product Introduction
Automatic corner edge sealing machine YST-JBFX-50 is the carton through the front section of the sealing machine in the middle of the upper and lower sealing, into the 90 ° corner machine, by pushing the box plate pushed into the corner edge sealing machine, photoelectric detection to the machine according to the specifications of the carton, PLC control, automatic adjustment of the machine width and height. Automatic and simultaneous sealing of the four corner edges, fast sealing speed, sealing corner folding without wrinkles, the upper and lower four corner edges of the carton at the same time automatic sealing, smoothing, no manual adjustment of the machine, simple, convenient and fast. It is suitable for customers who require high requirements for external packaging and strict protection for internal products.
Application Industry
Widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries at home and abroad.
The hard-arm power manipulator system mainly includes four parts
| Model | YST-JBFX-50 |
| Maximum package size | L320-600mm×W200-500mm×H180-500mm |
| Conveying speed | 0-20m/min |
| Power supply | 220V 50/60Hz |
| Suitable for tape | W48mm/60mm/72mmxL1000yard |
| Air pressure | 6kg cm² |
| Table height | 600mm |
| Machine Dimension | L：1900mm W：1300mm H：1530mm |
| Weight | 400Kg |
| Motor | GPG |
| PLC | Germany Siemens |
| Touch Screen | MCGS |
| Pneumatic Components | AirTAC |
| Photoelectric sensor | LEUZE |
Product Features
1. The machine is designed to be simple to operate, economical and durable, safe and with the lowest failure rate.
2. adjust the width and height of the machine manually according to the carton specification, suitable for sealing the same specification carton at the same time.
3. After the carton is sealed in the middle of the front sealing machine, it enters the 90-degree corner mechanism and is pushed into the corner sealing machine by the pushing board to seal the carton; the upper and lower four corners of the carton are sealed and smoothed automatically at the same time.
4. Simple and convenient operation, strong applicability, beautiful sealing, fast, labor-saving and high efficiency.
5. Equipped with blade protection device. Avoid accidental stabbing during operation.
6. The machine can be combined with FX-50,FX-56,SLZFX-50,CGFX-50 models to complete the "H" type sealing.
