bottle packing robot arm manipulator
Short Description:
The bottle grasping device is a pneumatic tool. With compressed air (0.20-0.25Mpa), the inflatable capsule grasp the bottle. When the exhaust occurs, the bottle is restored, and the inlet and exhaust of the clamp is controlled by a two three-way solenoid valve.This grasp assembly, with a special wedge structure, and use a compression spring, in abnormal circumstances, the clamp will raise, so that will not damage the bottle, box and machine.Another characteristic of this grip is the aluminum frame structure, thus light weight and high strength.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Working principle and main structure

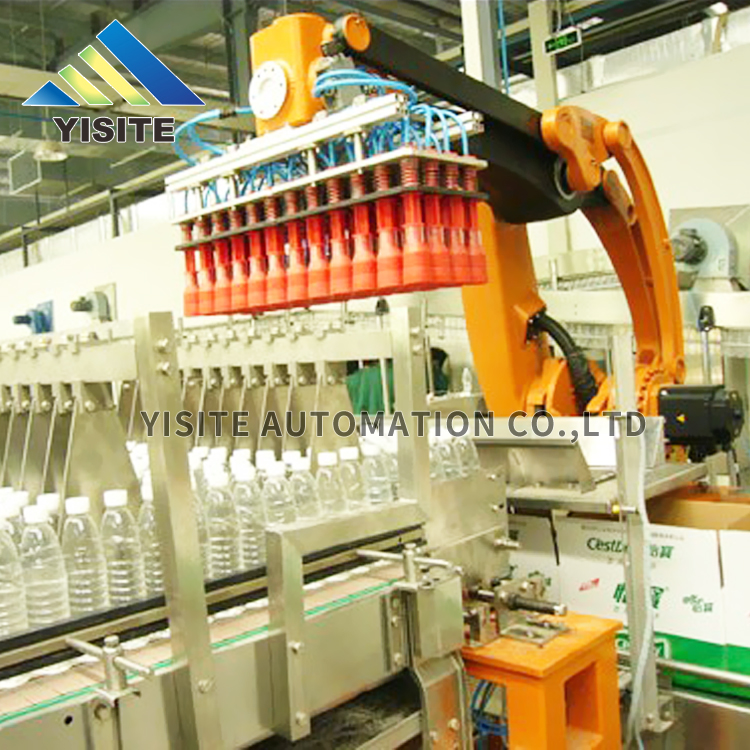

Working principle of packing: the robot grabs the head of the bottle from the bottle belt, the robot grasps turn to the boxes conveyor, the bottle moves down on the box;
Main structure:
Transmission box device
The device uses the flat top chain as the transport box, driving the flat top chain operation.The effect is to put the empty box into the machine, put into the bottles, and then put the box into the machine.According to the number of boxes every time, group the empty boxes into the machine, empty box group entry to the machine position and wait for the bottle filling, the bottle box is quickly sent out of the machine, stop waiting for the bottle delivery time.The whole working procedure is controlled by PLC of the motor opening, stop and variable speed;
Grasping bottle device
The bottle grasping device is a pneumatic tool. With compressed air (0.20-0.25Mpa), the inflatable capsule grasp the bottle. When the exhaust occurs, the bottle is restored, and the inlet and exhaust of the clamp is controlled by a two three-way solenoid valve.This grasp assembly, with a special wedge structure, and use a compression spring, in abnormal circumstances, the clamp will raise, so that will not damage the bottle, box and machine.Another characteristic of this grip is the aluminum frame structure, thus light weight and high strength.

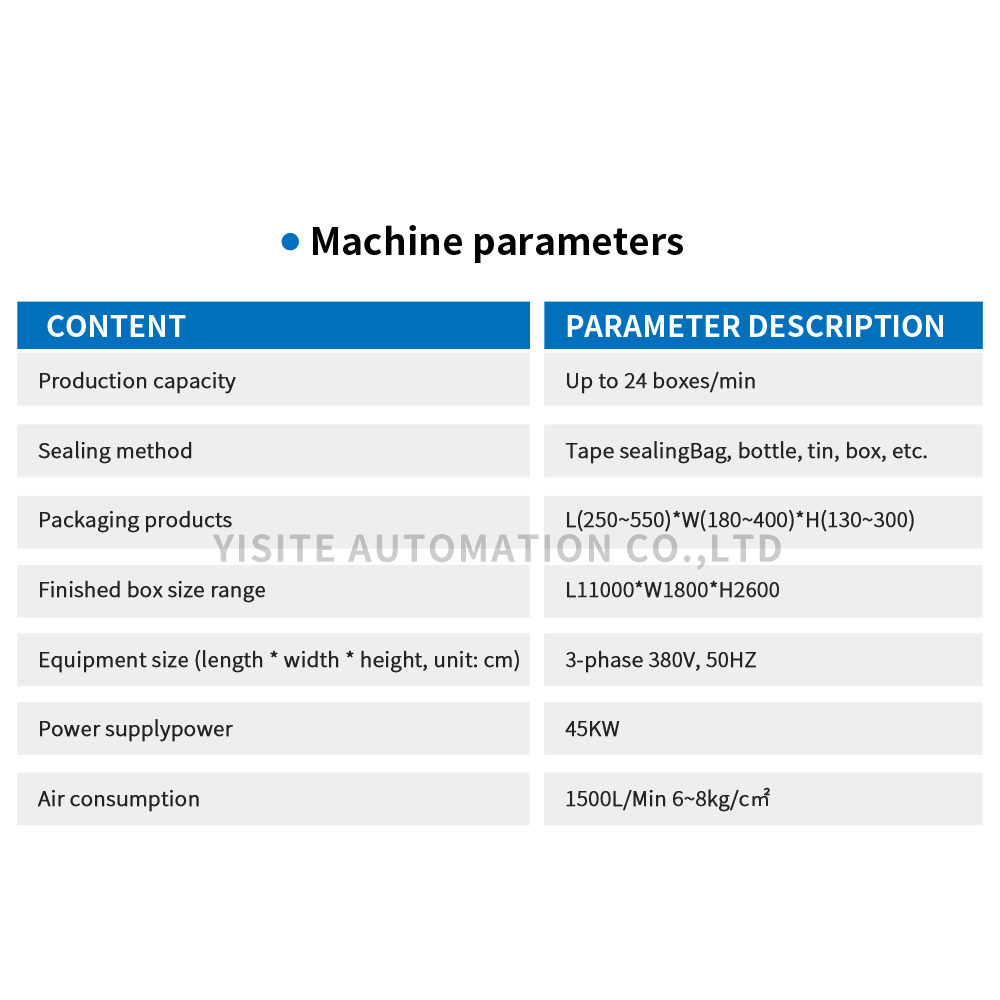

Main parameters
Production capacity: (500ml as basis) can meet the production and packing requirements of 36,000 bottles / h
Power: 5kw
compressed air:
Gas pressure: 0.75Mpa
Operating pressure: cylinder 0.65-0.75 Mpa grip 0.20-0.25Mpa
gas consumption:1L/M
